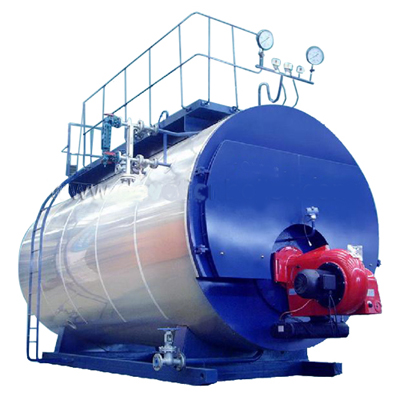

Steam Boiler for Feed Machinany

Specifications:
Industrial boiler 30-6000kg/h
1.Structure: water tube
2.Capacity: 30kg
3.Pressure: 7kg
Industrial boiler 30-6000kg/h specification:
1.The overall configuration of the combustion system.
The steam boiler and burner as a whole design, which features tailor-made according to the design of the boiler is a tradition in my company, so that the boiler combustion system to achieve the best ratio, energy saving and environmental protection technology is an organic combination of.
2.Advanced automatic control functions
Using automatic microcomputer program control, integrated automatic pressure control, fire detection, water protection, automatic alarm and so on intelligent control, fool-style one-touch control, touch of a button you can enter the automatic running state, all the safety protection devices are to work without someone on duty, so that the operator is more peace of mind.
3.The structural design of Safety Science
Equipped with a safety valve, pressure controller, water level control and protection devices protection devices such as multi-chain, absolutely safe and reliable use of fins aqueduct tubular furnace gall structure, to effectively compensate for thermal expansion, thermal expansion and contraction of stress to prevent the emergence of the boiler structure, safety and reliability, extended service life.
4.High-quality steam fast
Small water volume of large steam pit unique design allows you to steam within the shortest period of time, built-in steam-water separator devices, ensure that the senior cadres of the degree of high-quality steam.
Manufacturing Specifications:
boiler design and manufacturing are in accordance with "steam boiler safety technology to monitor the point of order," which stipulated selected.
Boiler heating surface used in welding wire should be the quality of materials and a certificate.
Boiler Manufacturing by JB/T1618 "shell boiler pressure parts manufacturing technology conditions" to.
Boiler welding by JB/T1613 "boiler pressure parts welding conditions" for.
Boiler pressure parts for welding must be by the "Boiler and Pressure Vessel Boilers Pressure Pipe Welder.
Examination and Management Rules" have passed the examination as a welder.
Boiler NDT inspection by JB/T4730 "non-destructive detection of pressure equipment" and "steam boiler safety technology to monitor the point of order," the provisions of Article 82 of the welding seam should be 100% testing, quality, not less than II and qualified.
After the completion of boiler manufacturers, according to JB/T1612 "boiler hydrostatic test technical conditions" to the test pressure of 1.2MPa.
Boiler paint and packaging transport reference JB/T1615-91 relevant regulations.
